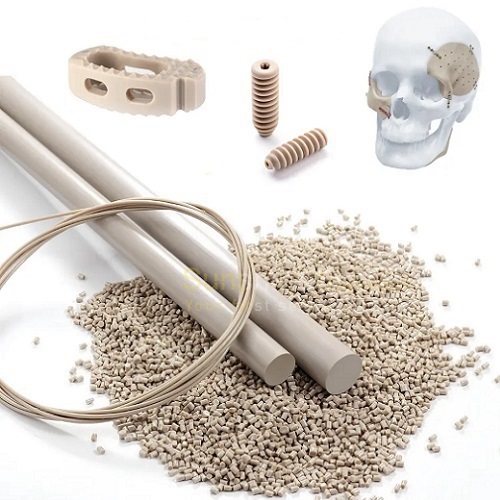

Natural PEEK Rod
PEEK rods from us offer resistance to elevated temperatures, radiation and chemicals. Their dimensional stability and mechanical strength are second to none. The diameter is from 6mm to 250mm
Content
What is Natural PEEK Rod
We stock and manufacturer to extruded PEEK rod. Peek is one of the most important high performance plastics, and as such is supplied in several different shapes in addition to rods. Natural PEEK rods can be used in many fields and industry segments, and have therefore been developed in several grades for ease of use. Available dimensions range from 4 mm to 210 mm in diameter, and standard lengths of 1000 mm and 3000 mm. Information regarding individual stocking programs can be found on the product detail pages.
Application Temperature
Our natural PEEK rod is suitable for applications in a temperature range from -60 °C to 260 °C.Applications
Our natural PEEK rod can be used for gears, wear strips, bushes, metering pumps, light mountings, friction bearings, ball valve seals, pump housings, wafer supports, plug parts and impact plates.Characteristics
• Very high resistance to frictional wear• High heat resistance and thermal stability
• High yield strength at high temperatures
• Resistant to weather influences
• Extreme high wear resistance
• Extreme high fatigue strength
• Extreme high tensile strength
• Very high dimensional stability
• Food Contact Declarations
• High chemical resistance
• High hydrolysis resistance
• PTFE and silicone free
• FDA Approved
Industries
• Mechanical Engineering• Oil andGas Industry
• Railway Industry
• Timber Industry
• Water Industry
• Energy Industry
• Bakery Industry
• Ship Building
• Healthcare
• Automotive
Machined Products
Lead ScrewsLinear Rails
Bearings
Gears
Natural PEEK Rod Properties
|
Properties |
Test Methods |
Typical Value |
Test Unit |
| Density |
ASTM D792 |
1.31 |
g/cm3 |
| Rockwell Hardness | ASTM D785 | 99 |
- |
|
Tensile Strength |
ASTM D638 |
105 | mpa |
| Flexural Strength |
ASTM D790 |
150 |
mpa |
| Tensile Elongation at Break | ASTM D638 | 40 |
% |
|
Static Coefficient of friction @ 68°F 50 psi |
ASTM D3702 |
0.19 | - |
| Moisture absorption | ASTM D570 | 0.02 | % |
| Compression modulus | ASTM D695 | 3200 |
mpa |
| Continues working Temperature | - | 260 | °C |
